DCS-25PV2 Valve Bag Packing Machine / Valve Packer 25 Kg Weighing Controller
1 σύνολο
DCS-25PV2 Valve Bag Packing Machine / Valve Packer 25 Kg Weighing Controller
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Βασικές πληροφορίες
Τόπος καταγωγής: Suzhou
Μάρκα: Sanhe
Πιστοποίηση: ISO9001:2015, CE
Αριθμό μοντέλου: DCS-25PV 2 (τύπος βιδών)
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Ξύλινη παλέτα
Χρόνος παράδοσης: 90 ημέρες
Όροι πληρωμής: L/C, T/T
Δυνατότητα προσφοράς: 90 σύνολα το μήνα
Στοιχείο: Μηχανή τοποθέτησης μέσα σε σάκκο βαλβίδων
Λειτουργία: Συσκευασία τσαντών βαλβίδων
Ικανότητα παραγωγής: 90 σύνολα το μήνα
Έλεγχοι: PLC
Σκόνη: ηλεκτρικός
Προέλευση: Suzhou
Περιγραφή προϊόντων

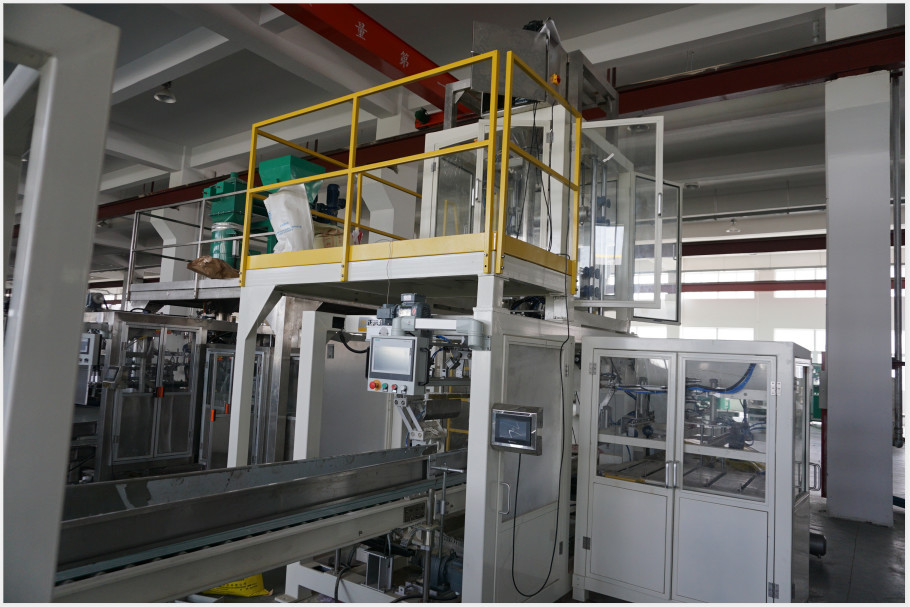

DCS-25PV2 Valve Bag Packing Machine / Valve Packer 25 Kg Weighing Controller


A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.



B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;


At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.


The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.



C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.


D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine



Main specialty
    Valve bag packing for Powder and ultrafine powder.
 Can be twin-type packer
 Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
The parameter and function :
  DCS-25PV2 (screw type)
Scope of application
Suitable materials Powder and thin granule
Suitable packing container Single helix
Technical parameters
Weighing range(Kg) 10-50
Packing speed(bag/H) 30-120
Packing Accuracy

Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)



The follwing questions for us to help you find what you want ?

1, The material you want to pack and its size(μm, mm), bulk density(kg/m3)

2, Packing weight (kg/bag), capacity (t/day)

3, Detailed description of production line

Our core products is :

Valve Bagging Machine .
Big bag packing machine.
Ton bag pack machine.
Ton bag discharger.
10L-1000L liquid filling machine.
Palletizing Line.
